BoxAir Inverter Split heat pump

Extremely quiet and economical air-to-water heat pump in split design. The most valuable parts are stored in the unit inside the object. Even lower outdoor noise level of the pump.
  • Energy efficienty

  • R410a refrigerant

  • Heating water temperature up to 65 °C

  • Output from 1 to 22 kW

  • Online control & 24/7 remote monitoring
BoxAir Inverter Split - Heat pumps
Contact us

MAIN FEATURES

Advanced split design for maximum efficiency

  • Air-to-water heat pump of split design

  • The most valuable parts of the heat pump are stored in a unit inside the building

  • The connecting pipes of the indoor and outdoor units form the low pressure (cold) part of the cooling circuit, so that heat loss through the pipework is completely eliminated

  • Distance between indoor and outdoor units up to 15 metres

  • Low heating water volume requirements in the system

  • Support for connection to the power cascade without the need for a third-party MaR (measurement and control) system


Schedule a consultation

BUILT TO PERFORM, DESIGNED TO LAST

Compact and quiet heating solution

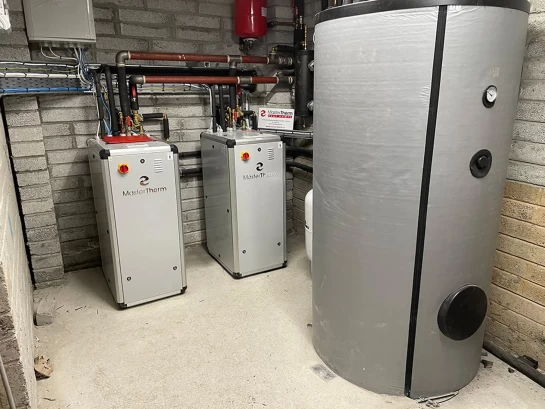

Unique indoor unit

Typically located in the mechanical room of the building and therefore protected against the weather. It contains the most valuable parts of the pump including a frequency-controlled compressor, an electronically controlled expansion valve, control electronics, circulator and more.

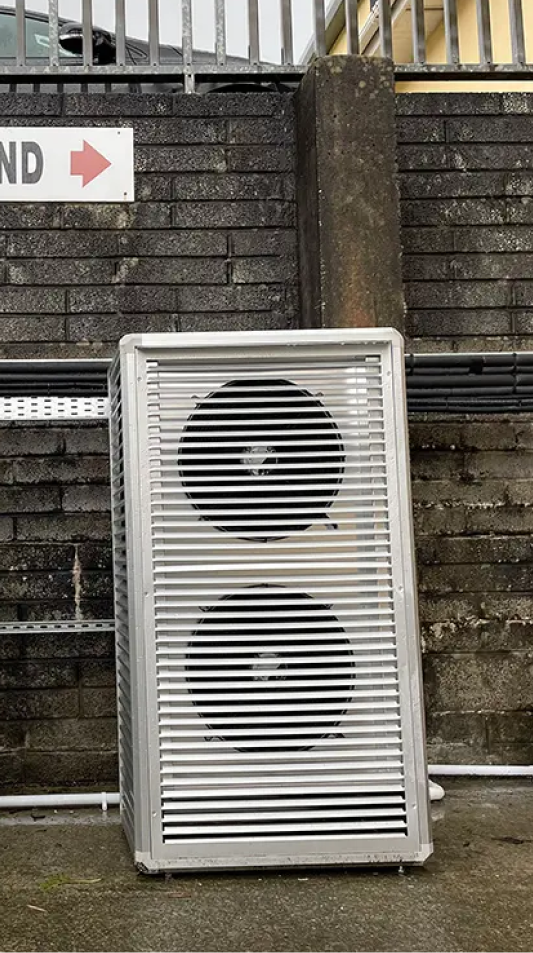

Outdoor unit

It is more dimensionally efficient than the BoxAir Inverter all-in-one pumps. It includes an evaporator and ultra-quiet fans with widely variable speed control. Thanks to the compressor located in the indoor unit, the outdoor unit is even quieter than the BoxAir Inverter all-in-one model. The durable all-aluminum construction of profiles and panels is long-lasting and resistant to weathering and corrosion.

Even smaller size

The BoxAir 22IS and BoxAir 26IS models offer a more compact size of the outdoor unit due to the presence of only one fan and a smaller evaporator.

Schedule a consultation

Elevating Ventilation Standards

Extensive advantages of BoxAir Inverter Split units

  • 24/7 remote service monitoring and diagnostics
  • Absolute reliability thanks to our 20+ years of commercial & industrial experience
  • Extensive intelligent optional equipment: internet connection (monitoring and logging), modbus/BMS, integrated MID electric/heat meter, communication with PV Inverter and Batteries, smart grid etc.
  • Active cooling mode (optional equipment)
  • Use for heating and cooling of the building including hot water supply
  • Indoor unit with compressor sound attenuated to the level of a conventional refrigerator
  • Minimised noise in the outdoor unit due to ultraquiet fans and no compressor
  • Max heating water temperature 60 °C
  • Minimized noise due to ultra-quiet fans with smooth speed control
  • Outdoor temperature range from -20 °C to +40 °C
  • Integrated electric boiler (automatic connection of electric supply if required without affecting the thermal comfort of the building
  • Avaliable in 3 phases / 1 phase variant
  • Built-in heating side circulation pump

Product specifications

Technical details

Model Performance
at A7W35		 Thermal loss of the building Qz Seasonal energy efficiency of heating at a 35 °C low temperature operation Seasonal energy efficiency of heating at a 55 °C medium temperature operation Acoustic pressure level Lp (5 m outside of unit) Order number (according to heating circuit control)
kW kW SCOP Class SCOP Class dB(A)  Regulation STANDARD (μPC) Regulation PLUS (pCO5)
BoxAir 22IS 2-7 up to 5,5  4.38   A++ 3.33   A++ 34 1BA22IS-01  1BA22IS-11
BoxAir 26IS 3–9  up to 8,5    4.29  A++ 3.24  A++ 34 1BA26IS-01   1BA26IS-11
BoxAir 37IS   5–17 up to 13   4.49   A+++ 3.51  A++ 41  1BA37IS-01  1BA37IS-11
BoxAir 45IS  7–22 up to16  4.46  A+++ 3.48   A++ 41 1BA45IS-01   1BA45IS-11

Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxilliary heating circuit, 1-zone space temperature, 1 heating circuit.

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

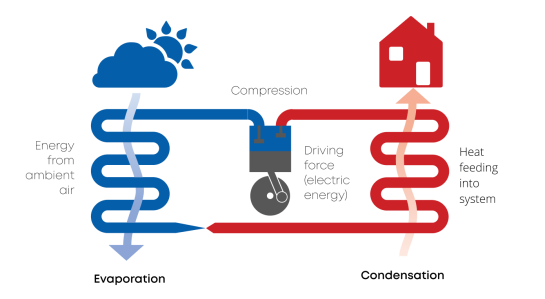

How it works

Discover the technology behind

Air-to-water heat pumps are based on the principle of extracting heat from the ambient air, whose temperature can be many degrees Celsius below zero. The heat extracted from the environment is transferred by the heat pump to the heating water that heats the building, or is used for the preparation of hot water. The system achieves a seasonal efficiency of up to 4.5 times higher than that of a conventional electric boiler and thus delivers significant energy savings.

Heat pump control

Heat pump control

Master Therm software

  • Smart control for cooling and peripherals
  • Advanced temperature feedback based on room sensors
  • Manage up to 6 heating circuits, including pools or solar panels
  • Control via touchscreen or online app
  • Remote monitoring and diagnostics for seamless operation
