BoxAir Inverter heat pump

Extremely quiet & efficient air-to-water compact monobloc heat pump. Range from 1 to 22 kW. Repeatedly awarded by experts worldwide.

  • Energy efficiency

  • R410a refrigerant

  • Heating water temperature up to 65 °C

  • Output from 1 to 22 kW

  • Online control & 24/7 remote monitoring

Product photos

BoxAir Inverter - Heat pumps #2
BoxAir Inverter - Heat pumps #3
BoxAir Inverter - Heat pumps #4
BoxAir Inverter - Heat pumps #5
BoxAir Inverter - Heat pumps
Contact us

MAIN FEATURES

Compact and quiet heating for modern living

  • All-in-one unit: compact monobloc air-to-water heat pump

  • Easy installation, no need of any indoor unit or a hydro- / electo-box

  • Perfect for residential objects and family houses with thermal loss up to 16 kW


Schedule a consultation

BUILT TO PERFORM, DESIGNED TO LAST

Durable, safe, and all-in-one heating solution

All-in-one unit

Easy installation. No hydro- or electrobox needed, everything integrated in the outside casing. Including heating side circulation pump, frequency converter etc.

Unique all-aluminium cabinet

Constructed of aluminium profiles and panels, the heat pump resists weathering and corrosion over the long term.

Extremely quiet & efficient

Super-quiet fans with fluent rotation control, frequency controlled compressor and electronically-controlled expansion valve.

Schedule a consultation

Elevating Ventilation Standards

Extensive advantages of BoxAir Inverter units

  • 24/7 remote service monitoring and diagnostics
  • Absolute reliability thanks to our 20+ years of commercial & industrial experience
  • Extensive intelligent optional equipment: internet connection (monitoring and logging), modbus/BMS, integrated MID electric/heat meter, communication with PV Inverter and Batteries, smart grid etc.
  • Active cooling mode (optional equipment)
  • Minimized noise due to ultra-quiet fans with smooth speed control
  • Max heating water temperature 60 °C
  • Outdoor temperature range from -20 °C to +40 °C
  • Back-up heater as standard
  • Built-in heating side circulation pump
  • Avaliable in 3 phases / 1 phase variant

PRODUCT SPECIFICATIONS

Technical details

Model Performance
at A7W35		 Thermal loss of the building Qz Seasonal energy efficiency of heating at a 35 °C low temperature operation Seasonal energy efficiency of heating at a 55 °C medium temperature operation Acoustic pressure level Lp (5 m outside of unit) Order number (according to heating circuit control)
kW kW SCOP Class SCOP Class dB(A)  Regulation STANDARD (μPC) Regulation PLUS (pCO5)
BoxAir 22I 2-7 up to 5,5 4,38 A++ 3,33 A++ 37 1BA22I-01 1BA22I-11
BoxAir 26I  3-9 up to 8,5 4,29 A++ 3,24 A++ 37 1BA26I-01  1BA26I-11
BoxAir 30I 5–12 up to 10  4,75 A+++ 3,61 A++ 37 1BA30I-01   1BA30I-11
BoxAir 37I 5–17  up to 13 4,49 A+++ 3,51 A++ 41 1BA37I-01  1BA37I-11
BoxAir 45I7–22 up to 16 4.46  A+++  3.48  A++ 411BA45I-01  1BA45I-11

Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxilliary heating circuit, 1-zone space temperature, 1 heating circuit.

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

HOW IT WORKS

Discover the technology behind

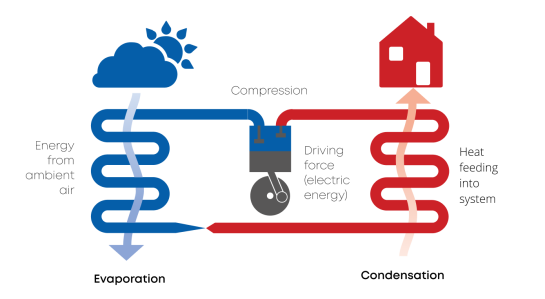

Air-to-water heat pumps are based on the principle of extracting heat from the ambient air, whose temperature can be many degrees Celsius below zero. The heat extracted from the environment is transferred by the heat pump to the heating water that heats the building, or is used for the preparation of hot water. The system achieves a seasonal efficiency of up to 4.5 times higher than that of a conventional electric boiler and thus delivers significant energy savings.

Heat pump control

Heat pump control

Master Therm software

  • Smart control for cooling and peripherals
  • Advanced temperature feedback based on room sensors
  • Manage up to 6 heating circuits, including pools or solar panels
  • Control via touchscreen or online app
  • Remote monitoring and diagnostics for seamless operation
