BoxAir 60/90 Inverter P heat pump

The most powerful air-to-water heat pumps in our range. Highly efficient R290 units with output up to 50 kW. Designed for commercial & industrial heating and cooling.
  • Energy efficienty

  • R290 refrigrant

  • Heating water temperature up to 75 °C

  • Ready for cascades from 100 to 1000 kW

  • Online control & 24/7 remote monitoring

Product photos

BoxAir 60/90 Inverter P - Heat pumps #2
BoxAir 60/90 Inverter P - Heat pumps #3
BoxAir 60/90 Inverter P - Heat pumps
Contact us

MAIN FEATURES

Powerful heating and cooling solution

  • Unrivaled price/performance ratio for commercial and industrial applications (office buildings, factories, warehouses, schools, hotels, sport facilities etc.)

  • All-in-one unit – easy installation, no need of any indoor unit

  • Integrated MasterLAN software – up to 16 units can be set up and connected to control power cascades of hundreds of kW


Schedule a consultation

BUILT TO PERFORM, DESIGNED TO LAST

Durable, safe, and all-in-one heating solution

All-in-one unit

Easy installation, no need of any indoor unit. Makes promp return of investment even faster.

Highest power

BoxAir 90 IP offers output up to 50 kW which makes it the most powerful air-to-water unit in Master Therm range. (BoxAir 60 IP with 35 kW.)

Ready for cascades

Integrated MasterLAN software: up to 16 units can be easily set up and connected to control power cascades of hundreds of kW.

Schedule a consultation

Elevating Ventilation Standards

Extensive advantages of BoxAir 60/90 Inverter P units

  • 24/7 remote service monitoring and diagnostics
  • Absolute reliability thanks to our 20+ years of commercial & industrial experience
  • Extensive intelligent optional equipment: internet connection (monitoring and logging), modbus/BMS, integrated MID electric/heat meter, communication with PV Inverter and Batteries, smart grid etc.
  • Active cooling mode (optional equipment)
  • Minimized noise due to ultra-quiet fans with smooth speed control
  • Max heating water temperature 75 °C
  • Anti-legionella function from compressor only
  • Outdoor temperature range from -20 °C to +40 °C
  • Back-up heater 15 + 15 kW as standard
  • Built-in heating side circulation pump

PRODUCT SPECIFICATIONS

Technical details

Model Design Performance
at A7W35		 Thermal loss of the building Qz Seasonal energy efficiency of heating at a 35 °C low temperature operation Seasonal energy efficiency of heating at a 55 °C medium temperature operation Maximum
heating water temperature		 Order number (according to heating circuit control)
+ pricing *
kW kW SCOP Class SCOP Class °C Regulation PLUS (pCO5)
BoxAir 60 Inverter P  compact 7–30 up to 25 4,89  A+++ 3,73 A++ 75 BA60IP-311U
BoxAir 90 Inverter P  compact 12–50  up to 40 4,68 A+++ 3,55 A++ 75 BA90IP-311U

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

HOW IT WORKS

Discover the technology behind

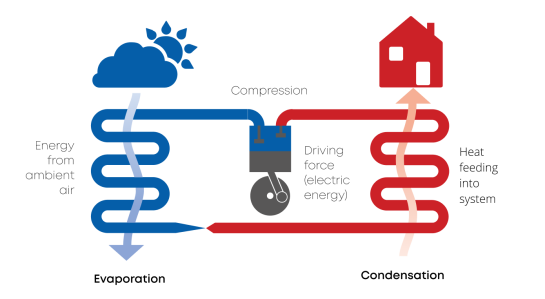

Air-to-water heat pumps are based on the principle of extracting heat from the ambient air, whose temperature can be many degrees Celsius below zero. The heat extracted from the environment is transferred by the heat pump to the heating water that heats the building, or is used for the preparation of hot water. The system achieves a seasonal efficiency of up to 4.5 times higher than that of a conventional electric boiler and thus delivers significant energy savings.

Heat pump control

Heat pump control

Master Therm software

  • Smart control for cooling and peripherals
  • Advanced temperature feedback based on room sensors
  • Manage up to 6 heating circuits, including pools or solar panels
  • Control via touchscreen or online app
  • Remote monitoring and diagnostics for seamless operation
