MAIN FEATURES
Ground-to-water heat pump (or water-to-water on request)
Power up to 64 kW (B0W35)
Power cascade control MasterLAN in basic equipment
ModbusRTU communication protocol in basic equipment
Built-in electronic circulators with speed control for primary and secondary circuits
Built-in electrical switchgear with protection of all components
BUILT TO PERFORM, DESIGNED TO LAST
Output up to 46 kW from one compressor only. Or 64 kW with 2 compressors solution.
Available also as water-to-water heat pump. Ready for heat recovery applications.
Power cascade control MasterLAN & ModbusRTU communication prototol in basic equpment.
Elevating Heating Standards
Product specifications
| Model | Performance at B0W35 | Thermal loss of the object Qz | Performance at W10W35 | Seasonal energy efficiency of heating at a 35 °C low temperature operation | Seasonal energy efficiency of heating at a 55 °C medium temperature operation | Order number (according to heating circuit control) | ||
|---|---|---|---|---|---|---|---|---|
| kW | kW | kW | SCOP | Class | SCOP | Class | PLUS | |
| AquaMaster 120Z | 46,4 | up to 46 | 60,8 | 4,97 | A+++ | 3,35 | A++ | 1AQ120Z-1 |
| AquaMaster 150.2Z | 57,7 | up to 58 | 79,3 | 4,38 | A++ | 3,19 | A+ | 1AQ150.2Z-1 |
| AquaMaster 180.2Z | 64,4 | up to 64 | 90,9 | 4,50 | A++ | 3,35 | A++ | 1AQ180.2Z-1 |
Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

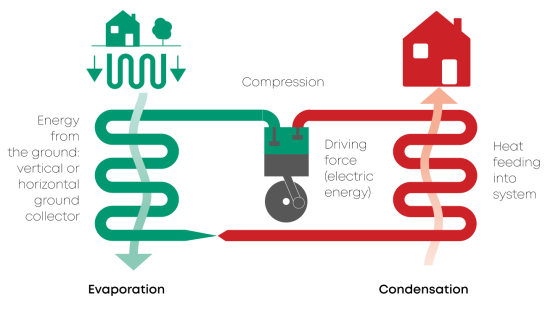

How it works
Ground-to-water heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and removes ground heat. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year. The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher thanthat of a conventional electric boiler.
Heat pump control
