MAIN FEATURES
All-in-one unit – significant savings on installation time and costs
Output up to 6 kW (B0W35)
Minimum space required – plant room of only 0.3 m2
BUILT TO PERFORM, DESIGNED TO LAST
Output up to 6 kW. Perfect for low-carbon & sustainable properties.
Unique compact design with minimum installation space (0.3 m2) required. Produced in both left and right configurations.
SHW temperature up to 65 °C. Anti-legionella function from compressor only.
Elevating Ventilation Standards
Product specifications
| Model | Performance at B0W35 | P-Design | Thermal loss of the object Qz | Seasonal energy efficiency of heating at a 35 °C low temperature operation | Seasonal energy efficiency of heating at a 55 °C medium temperature operation | Maximum heating & hot water temperature | Order number (according to heating circuit control) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| kW | kW | kW | SCOP | Class | SCOP | Class | °C | Regulation STANDARD (μPC) | Regulation PLUS (pCO5) | |
| AquaMaster Inverter P 17ICP | 1-6 | 4 | up to 6 | 4,87 | A+++ | 3,76 | A++ | 75 / 65 | AQ17ICP-101R | AQ17ICP-111R |
Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxilliary heating circuit, 1-zone space temperature, 1 heating circuit.
Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

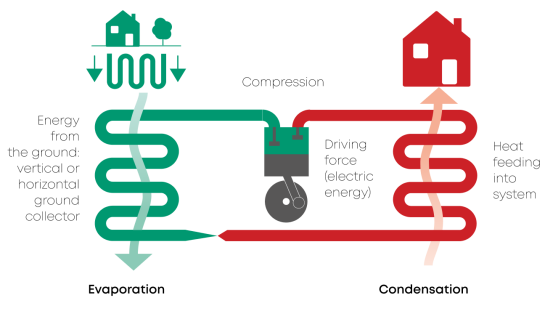

How it works
Ground-to-water heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and removes ground heat. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year. The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher thanthat of a conventional electric boiler.
