MAIN FEATURES
All-in-one unit – significant savings on installation time and costs
Output up to 15 kW (B0W35)
Minimum space required –plant room of only 0.5 m2
BUILT TO PERFORM, DESIGNED TO LAST
Output up to 15 kW. Perfect for low-carbon & sustainable private properties as well family or small apartment houses.

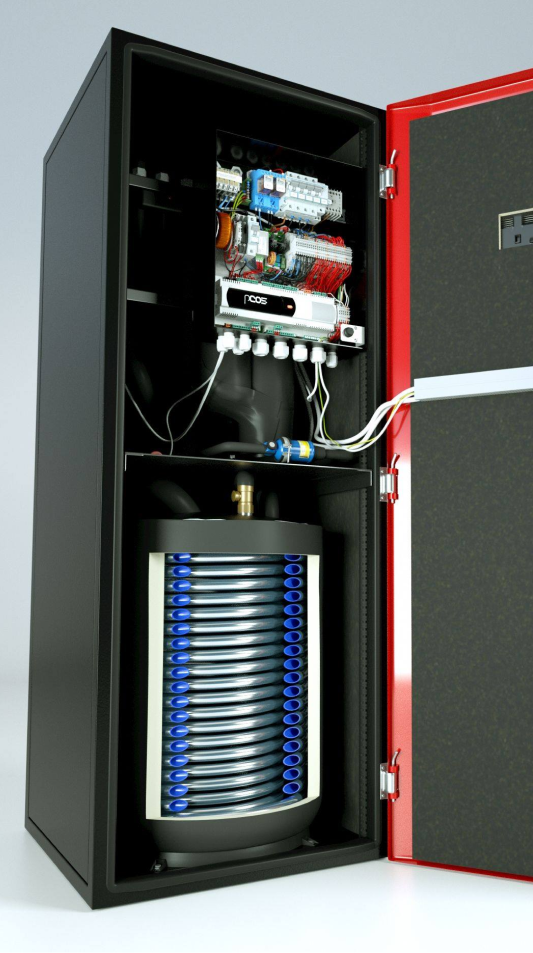

Unique compact design with minimum installation space (0.5 m2) required. Produced in both left and right configurations.
SHW temperature up to 64 °C.
Elevating Heating Standards
Product specifications
| Model | Performance at B0W35 | Thermal loss of the object Qz | Seasonal energy efficiency of heating at a 35 °C low temperature operation | Seasonal energy efficiency of heating at a 55 °C medium temperature operation | Order number (according to heating circuit control) | |||
|---|---|---|---|---|---|---|---|---|
| kW | kW | SCOP | Class | SCOP | Class | STANDARD | PLUS | |
| AquaMaster Inverter 17IC | 1-5 | up to 5 | 4,58 | A+++ | 3,46 | A++ | 1AQ17IC-0 | 1AQ17IC-1 |
| AquaMaster Inverter 22IC | 2-7 | up to 7 | 4,72 | A+++ | 3,58 | A++ | 1AQ22IC-0 | 1AQ22IC-1 |
| AquaMaster Inverter 26IC | 3-9 | up to 9 | 4,94 | A+++ | 3,81 | A++ | 1AQ26IC-0 | 1AQ26IC-1 |
| AquaMaster Inverter 30IC | 4-12 | up to 12 | 4,92 | A+++ | 3,82 | A++ | 1AQ30IC-0 | 1AQ30IC-1 |
| AquaMaster Inverter 37IC | 5-15 | up to 15 | 5,10 | A+++ | 3,97 | A+++ | 1AQ37IC-0 | 1AQ37IC-1 |
Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxilliary heating circuit, 1-zone space temperature, 1 heating circuit.
Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

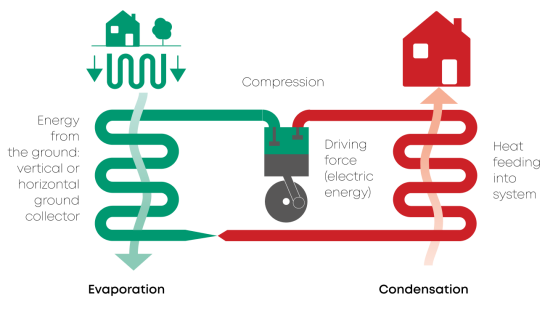

How it works
Ground-to-water heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and removes ground heat. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year. The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher thanthat of a conventional electric boiler.
Heat pump control
