Master Therm AquaMaster 45/90 Inverter P heat pump

World's unique range of heat pumps with R290. Power from 35 to 70 kW. Designed for heating and cooling of large-scale facilities.

  • Energy efficiency
  • R290 refrigerant
  • Heating water temperature up to 75 °C
  • Output up to 70 kW
  • Online control & 24/7 remote monitoring

Product photos

Master Therm AquaMaster 45/90 Inverter P - Ground source heat pumps #2
Master Therm AquaMaster 45/90 Inverter P - Ground source heat pumps
Contact us

MAIN FEATURES

Heating and cooling for large-scale facilities

  • Ground source heat pump (New Gen R290)

  • Compact design for residential, commercial and industrial applications

  • World's unique range of heat pumps with R290 refrigerant

  • Total cascade power of more than 1100 kW

  • Excellent also for industrial cooling and waste heat recovery

  • Anti-legionella function from compressor only

Schedule a consultation

INDUSTRIAL GRADE PERFORMANCE

Powerful technology for demanding projects

Our most powerful twin-compressor

Output up to 70 kW with a two-compressor solution, or 35 kW with a single-compressor unit. Designed to handle high demands with maximum efficiency.

Ground source or Water-to-water

Flexible installation options. Available also as a water-to-water heat pump. Ideally suited and ready for heat recovery applications in industrial settings.

Ready for cascades

Scalable power for large buildings. The system supports a total cascade power of more than 1100 kW.

Schedule a consultation

Connectivity and Control

Extensive advantages of AquaMaster 45/90

  • Power up to 70 kW (B0W35)
  • 24/7 remote service monitoring and diagnostics
  • Smart home integration: modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc.
  • Passive cooling module (optional equipment)
  • Ground source heat pump (or water-to-water on request)
  • Maximum heating water temperature: 75 °C
  • Anti-legionella function from compressor only. No backup heater required
  • Excellent for industrial cooling and waste heat recovery
  • Total cascade power of 1100 kW

Product specifications

Technical details

Model Performance at B0W35 Thermal loss of the building Qz Seasonal energy efficiency of heating at a 35 °C low temperature operation Seasonal energy efficiency of heating at a 55 °C medium temperature operation Order number (according to heating circuit control)
kW kW SCOP Class SCOP Class Regulation PLUS (pCO5)
AquaMaster 45 Inverter P 5–35 up to 35 4.85 A+++ 3.79 A++ AQ45IP-311U
AquaMaster 90 Inverter P 10–70 up to 70 4.85 A+++ 3.79 A++ AQ90IP-311U

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

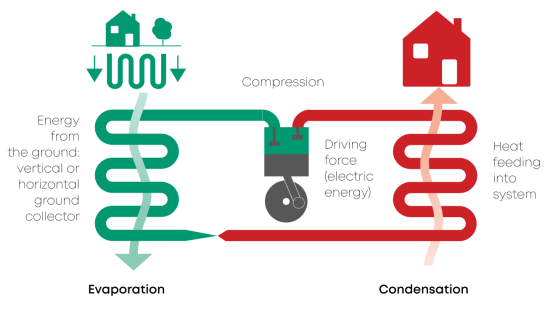

How it works

Stable energy from the ground

Ground source heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and removes ground heat. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year.

The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher than that of a conventional electric boiler.
