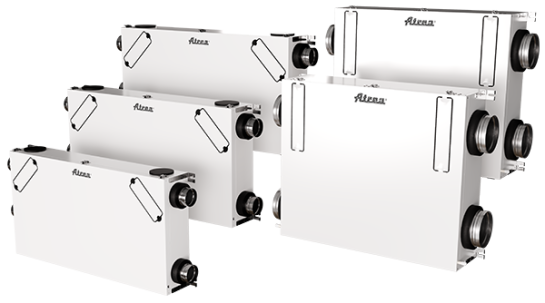

DUPLEX Pro / Pro-X

Compact ventilation units with heat recovery designed for central ventilation of detached houses, flats or smaller commercial premises. Designed to be suspended from the ceiling, with the option of integration into a suspended ceiling. A choice of several control levels is available. The CP control type is suitable for basic applications. The advanced aMotion control allows the unit to be operated via a touchscreen controller, a mobile app or remotely via the internet. It also offers a wide range of external inputs for controlling the unit’s output using air quality sensors.

Unit features

• Very low installation height from 200 mm (DUPLEX Pro units)
• Very low noise levels in the surrounding area
• Sandwich construction (outer painted galvanised sheet metal RAL 9010 + 30 mm mineral wool + inner galvanised sheet metal)
• Variable positioning of the flanges (DUPLEX Pro units)
• Variable door hinge positioning (DUPLEX Pro-X units)
• Filter replacement without the need to open the door
• Complies with energy class A+ in accordance with EU Commission Regulation 1253/2014
• Integrated control system with the option of control via the internet or a mobile app

EPREL

Our units are listed in the European Product Register for Energy Labelling (EPREL). You can view details of this unit, including the energy label, by clicking on the relevant unit size below.

Recommended controls

aMotion controls
