MAIN FEATURES
Ground source heat pump (New Gen R290)
Compact aluminium casing with minimal installation space
Minimum space required – plant room of only 0.3 m²
Fast installation kit: expansion vessel, pressure gauge, filter, fittings (optional equipment)
Suitable for individual properties or for installations with a shared ground loop
Great performance & efficiency – ideal for domestic and residential applications
COMPACT DESIGN, HIGH OUTPUT
Compact aluminium casing with minimal installation space. Designed to fit into a plant room of only 0.3 m², making it ideal for properties with limited space.
Designed with maximum safety in mind. Comes with an integrated refrigerant leak detector and automatic unit shutdown functionality to ensure secure operation.
Output up to 17 kW – ideal for domestic and residential applications.
Flexible and Intelligent
Product specifications
| Model | Performance at B0W35 | P-Design | Building heat loss Qz | Seasonal energy efficiency of heating at 35 °C low temperature operation | Seasonal energy efficiency of heating at 55 °C medium temperature operation | Max heating & hot water temp | Order number (according to heating circuit control) | ||
|---|---|---|---|---|---|---|---|---|---|
| kW | kW | kW | SCOP | Class | SCOP | Class | °C | Regulation PLUS (pCO5) | |
| AquaMaster 17 Inverter P | 1–5 | 4 | up to 5 | 4.59 | A+++ | 3.59 | A++ | 75 / 65 | AQ17IP-111U |
| AquaMaster 22 Inverter P | 2–8 | 6 | up to 8 | 4.75 | A+++ | 3.69 | A++ | 75 / 65 | AQ22IP-111U |
| AquaMaster 30 Inverter P | 3–12 | 9 | up to 12 | 5.13 | A+++ | 3.95 | A+++ | 75 / 65 | AQ30IP-111U |
| AquaMaster 37 Inverter P | 4–17 | 13 | up to 17 | 4.93 | A+++ | 3.98 | A+++ | 75 / 65 | AQ37IP-111U |
Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxiliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

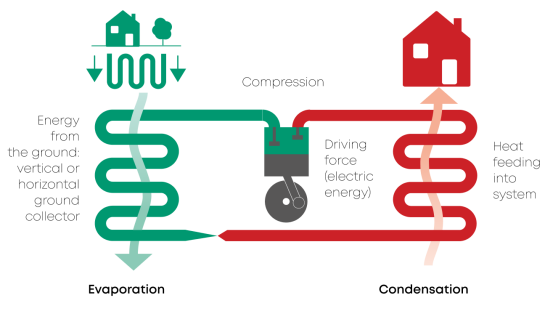

How it works
Ground source heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and draws heat from the ground. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year.
The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher than that of a conventional electric boiler.
