BoxAir Inverter P heat pump

Extremely quiet and economical monobloc air-to-water heat pump with R290 refrigerant. Perfect for family homes with thermal loss up to 18 kW.
  • Energy Efficiency

  • R290 Refrigerant

  • Heating Water Temperature up to 75 °C

  • No Ducts Needed

  • Output from 1 to 25 kW

  • Online Control & 24/7 Remote Monitoring

Product photos

BoxAir Inverter P - Heat pumps #2
BoxAir Inverter P - Heat pumps #3
BoxAir Inverter P - Heat pumps #4
BoxAir Inverter P - Heat pumps #5
BoxAir Inverter P - Heat pumps
Contact us

MAIN FEATURES

Innovative Outdoor Heating, Made Simple

  • All-in-one unit: A handy, compact monobloc air-to-water thermal pump for outdoor use

  • Straightforward installation without having to fiddle with the cooling (compressor) circuit or the existing heating system

  • No need for an indoor unit; all accessories, including controls and the circulation pump, are built into the outdoor unit

  • All components are fully serviceable


Schedule a consultation

BUILT TO PERFORM, DESIGNED TO LAST

Tough, Safe, and All-in-One Heating Solution

Unique All-Aluminium Cabinet

Aluminium construction of panels that offer long-lasting resistance to the elements and corrosion. Standard colour: anthracite RAL 7016.

All-in-One Unit

Simple installation. No need for a hydro or electrobox; everything is integrated into the outer casing, including the heating side circulation pump, frequency converter, etc.

Total Safety

Thanks to the low volume of the R290 refrigerant in the system, an integrated refrigerant leak detector, and the automatic shutdown of the unit.

Schedule a consultation

Elevating Heating Standards

The Many Benefits of BoxAir Inverter P Units

  • 24/7 remote service monitoring and diagnostics
  • Unwavering reliability thanks to over 20 years of commercial & industrial experience
  • Smart home integration: online 24/7 monitoring, modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc.
  • Active cooling mode (optional feature)
  • Minimal noise thanks to ultra-quiet fans with smooth speed control
  • Max heating water temperature 75 °C
  • Anti-legionella function activated by the compressor only
  • Outdoor temperature range from -20 °C to +40 °C
  • Integrated bivalent power supply as standard
  • Available in 3-phase / 1-phase variants
  • Built-in heating side circulation pump

Product Specifications

Technical Details

Model Design Performance
at A7W35		 Thermal Loss of the Building Qz Seasonal Energy Efficiency of Heating at a 35 °C Low Temperature Operation Seasonal Energy Efficiency of Heating at a 55 °C Medium Temperature Operation Maximum
Heating Water Temperature		 Order Number (According to Heating Circuit Control)
kW kW SCOP Class SCOP Class °C Regulation STANDARD (μPC) Regulation PLUS (pCO5)
BoxAir 22 Inverter P Compact 2-7 Up to 5 4.85 A+++ 3.76 A++ 75 BA22IP-301U BA22IP-311U
BoxAir 26 Inverter P  Compact 4–14 Up to 10 4.9 A+++ 3.83 A++ 75 BA26IP-301U BA26IP-311U
BoxAir 37 Inverter P Compact 6–20 Up to 14 4.37 A+++ 3.93 A++ 75 BA37IP-301U BA37IP-311U
BoxAir 45 Inverter P  Compact 8–25 Up to 18 4.74 A+++ 3.61 A++ 75 BA45IP-301U BA45IP-311U

Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxiliary heating circuit, 1-zone space temperature, 1 heating circuit.

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxiliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

How It Works

Discover the Technology Behind It

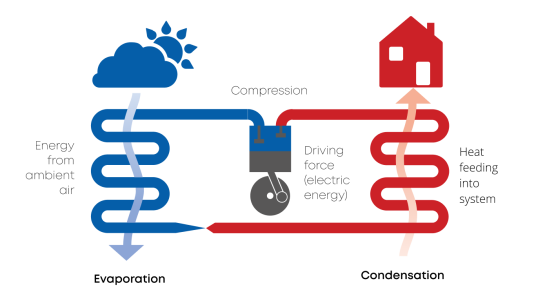

Air-to-water heat pumps operate on the principle of extracting heat from the surrounding air, which can often be several degrees Celsius below zero. The heat collected from the environment is then transferred by the heat pump to the heating water that warms the building or is used to produce hot water. The system achieves seasonal efficiency up to 4.5 times greater than a traditional electric boiler, resulting in significant energy savings.

Heat pump control

Heat pump control

Master Therm software

  • Smart control for cooling and peripherals
  • Advanced temperature feedback based on room sensors
  • Manage up to 6 heating circuits, including pools or solar panels
  • Control via touchscreen or online app
  • Remote monitoring and diagnostics for seamless operation
