BoxAir 60/90 Inverter P heat pump

The most powerful air-to-water heat pumps in our range. Highly efficient R290 units with output up to 50 kW. Designed for commercial & industrial heating and cooling.
  • Energy Efficiency

  • R290 Refrigerant

  • Heating Water Temperature up to 75 °C

  • Ready for Cascades from 100 to 1000 kW

  • Online Control & 24/7 Remote Monitoring

Product photos

BoxAir 60/90 Inverter P - Heat pumps #2
BoxAir 60/90 Inverter P - Heat pumps #3
BoxAir 60/90 Inverter P - Heat pumps
Contact us

MAIN FEATURES

Powerful Heating and Cooling Solution

  • Unmatched price/performance ratio for commercial and industrial applications (office buildings, factories, warehouses, schools, hotels, sports facilities, etc.)

  • All-in-one unit – simple installation, no indoor unit required

  • Integrated MasterLAN software – up to 16 units can be configured and connected to manage power cascades of hundreds of kW


Schedule a consultation

BUILT TO PERFORM, DESIGNED TO LAST

Durable, Safe, and All-in-One Heating Solution

All-in-One Unit

Simple installation, no indoor unit required. Ensures a faster return on investment.

Highest Power

BoxAir 90 IP provides output of up to 50 kW, making it the most powerful air-to-water unit in the Master Therm range (BoxAir 60 IP offers 35 kW).

Ready for Cascades

Integrated MasterLAN software: Up to 16 units can be easily configured and connected to control power cascades of hundreds of kW.

Schedule a consultation

Elevating Ventilation Standards

Extensive Advantages of BoxAir 60/90 Inverter P Units

  • 24/7 remote service monitoring and diagnostics
  • Unwavering reliability thanks to over 20 years of commercial & industrial experience
  • Comprehensive intelligent optional equipment: internet connection (monitoring and logging), modbus/BMS, integrated MID electric/heat meter, communication with PV Inverter and Batteries, smart grid, etc.
  • Active cooling mode (optional feature)
  • Minimal noise thanks to ultra-quiet fans with smooth speed control
  • Max heating water temperature 75 °C
  • Anti-legionella function activated by the compressor only
  • Outdoor temperature range from -20 °C to +40 °C
  • Back-up heater 15 + 15 kW as standard
  • Built-in heating side circulation pump

PRODUCT SPECIFICATIONS

Technical Details

Model Design Performance
at A7W35		 Thermal Loss of the Building Qz Seasonal Energy Efficiency of Heating at a 35 °C Low Temperature Operation Seasonal Energy Efficiency of Heating at a 55 °C Medium Temperature Operation Maximum
Heating Water Temperature		 Order Number (According to Heating Circuit Control)
+ Pricing *
kW kW SCOP Class SCOP Class °C Regulation PLUS (pCO5)
BoxAir 60 Inverter P  Compact 7–30 Up to 25 4.89  A+++ 3.73 A++ 75 BA60IP-311U
BoxAir 90 Inverter P  Compact 12–50  Up to 40 4.68 A+++ 3.55 A++ 75 BA90IP-311U

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxiliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

HOW IT WORKS

Discover the Technology Behind It

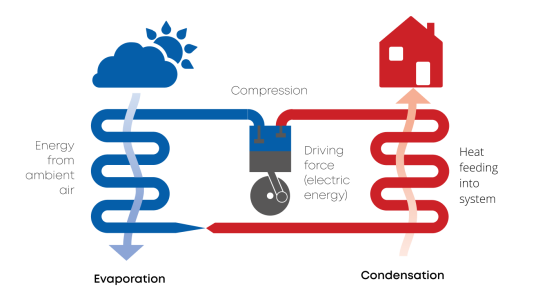

Air-to-water heat pumps operate on the principle of extracting heat from the surrounding air, which can often be several degrees Celsius below zero. The heat collected from the environment is then transferred by the heat pump to the heating water that warms the building or is used to produce hot water. The system achieves seasonal efficiency up to 4.5 times greater than a traditional electric boiler, resulting in significant energy savings.

Heat pump control

Heat pump control

Master Therm software

  • Smart control for cooling and peripherals
  • Advanced temperature feedback based on room sensors
  • Manage up to 6 heating circuits, including pools or solar panels
  • Control via touchscreen or online app
  • Remote monitoring and diagnostics for seamless operation
