MAIN FEATURES
Ground-to-water heat pump (or water-to-water on request)
Power up to 64 kW (B0W35)
Power cascade control MasterLAN in basic equipment
ModbusRTU communication protocol in basic equipment
Built-in electronic circulators with speed control for primary and secondary circuits
Built-in electrical switchgear with protection of all components
BUILT TO PERFORM, DESIGNED TO LAST
Output up to 46 kW from one compressor only. Or 64 kW with a 2 compressors solution.
Also available as a water-to-water heat pump. Ready for heat recovery applications.
Power cascade control MasterLAN & ModbusRTU communication protocol in basic equipment.
Elevating Heating Standards
Product Specifications
| Model | Performance at B0W35 | Thermal Loss of the Object Qz | Performance at W10W35 | Seasonal Energy Efficiency of Heating at a 35 °C Low Temperature Operation | Seasonal Energy Efficiency of Heating at a 55 °C Medium Temperature Operation | Order Number (According to Heating Circuit Control) | ||
|---|---|---|---|---|---|---|---|---|
| kW | kW | kW | SCOP | Class | SCOP | Class | PLUS | |
| AquaMaster 120Z | 46.4 | Up to 46 | 60.8 | 4.97 | A+++ | 3.35 | A++ | 1AQ120Z-1 |
| AquaMaster 150.2Z | 57.7 | Up to 58 | 79.3 | 4.38 | A++ | 3.19 | A+ | 1AQ150.2Z-1 |
| AquaMaster 180.2Z | 64.4 | Up to 64 | 90.9 | 4.50 | A++ | 3.35 | A++ | 1AQ180.2Z-1 |
Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxiliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

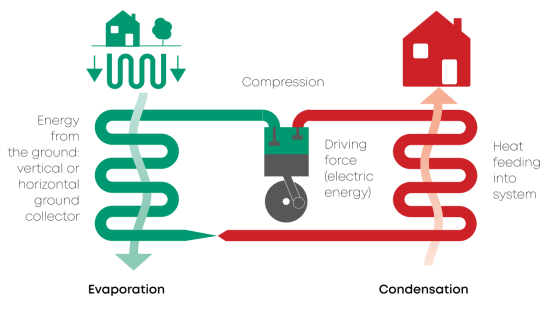

How It Works
Ground-to-water heat pumps extract energy from the ground through a vertical or horizontal collector. Antifreeze circulates through the collector and absorbs heat from the ground. Thanks to the constant temperature of the ground, the heat pump has a stable energy source year-round. The heat extracted from the ground is then transferred to the building. The system achieves seasonal efficiency up to 5.5 times greater than that of a conventional electric boiler.
Heat pump control

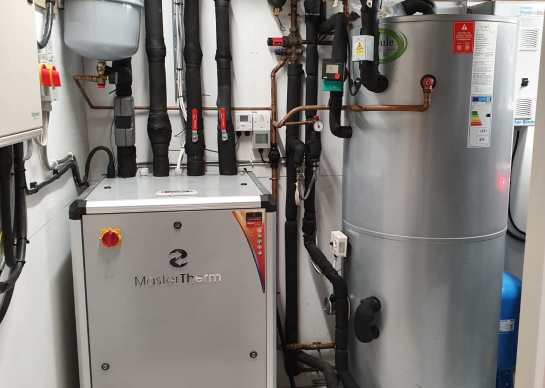

References
