MAIN FEATURES
All-in-one unit – significant savings on installation time and costs
Output up to 8 kW (B0W35)
Minimal space required – plant room of only 0.3 m2
BUILT TO PERFORM, DESIGNED TO LAST
Output up to 8 kW. Perfect for low-carbon & sustainable properties.

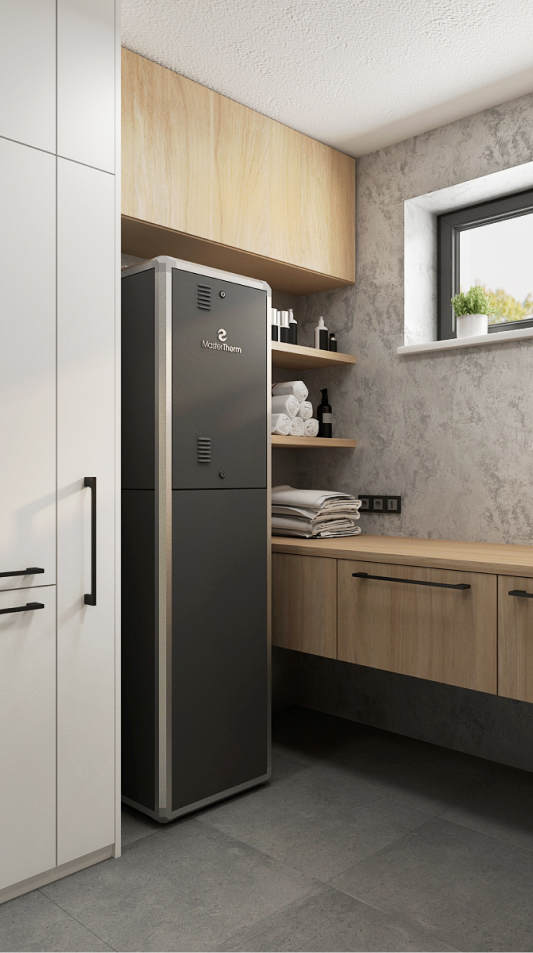

Unique compact design with minimal installation space (0.3 m2) required. Available in both left and right configurations.
SHW temperature up to 65 °C. Anti-legionella function activated by the compressor only.
Elevating Ventilation Standards
Product specifications
| Model | Performance at B0W35 | P-Design | Building's thermal loss Qz | Seasonal energy efficiency for heating at 35 °C low-temperature operation | Seasonal energy efficiency for heating at 55 °C medium-temperature operation | Maximum heating & hot water temperature | Order number (depending on heating circuit control) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| kW | kW | kW | SCOP | Class | SCOP | Class | °C | STANDARD Control (μPC) | PLUS Control (pCO5) | |
| AquaMaster Inverter P 17ICP | 1-5 | 4 | up to 5 | 4.59 | A+++ | 3.59 | A++ | 75 / 65 | AQ17ICP-101R/L | AQ17ICP-111R/L |
| AquaMaster Inverter P 22ICP | 2–8 | 6 | up to 8 | 4.75 | A+++ | 3.69 | A++ | 75 / 65 | AQ22ICP-101R/L | AQ22ICP-111R/L |
STANDARD Control (μPC): Designed for single-circuit heating systems. No auxiliary heating circuit, single-zone room temperature, 1 heating circuit.
PLUS Control (pCO5): Designed for multiple-circuit heating systems. 2 independent auxiliary heating circuits including mixing. 2-zone room temperature, up to 6 heating circuits.

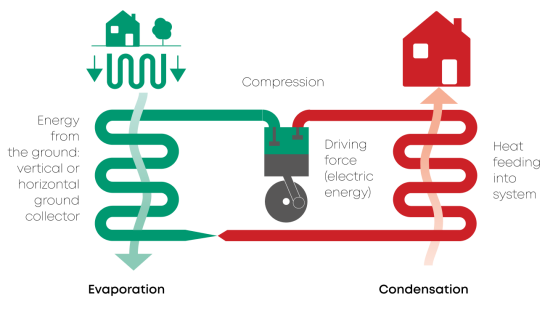

How It Works
Ground-to-water heat pumps extract energy from the ground through a vertical or horizontal collector. Antifreeze circulates through the collector and absorbs heat from the ground. Thanks to the constant temperature of the ground, the heat pump has a stable energy source year-round. The heat extracted from the ground is then transferred to the building. The system achieves seasonal efficiency up to 5.5 times greater than that of a conventional electric boiler.
